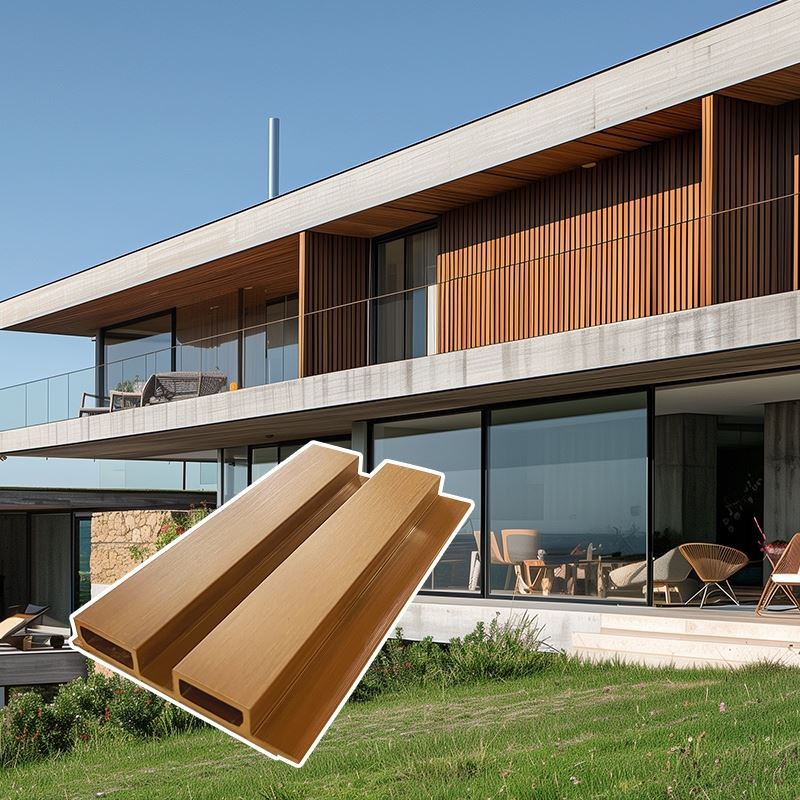

ASA Co-Extrusion WPC Outdoor Wall Panel - Third Generation

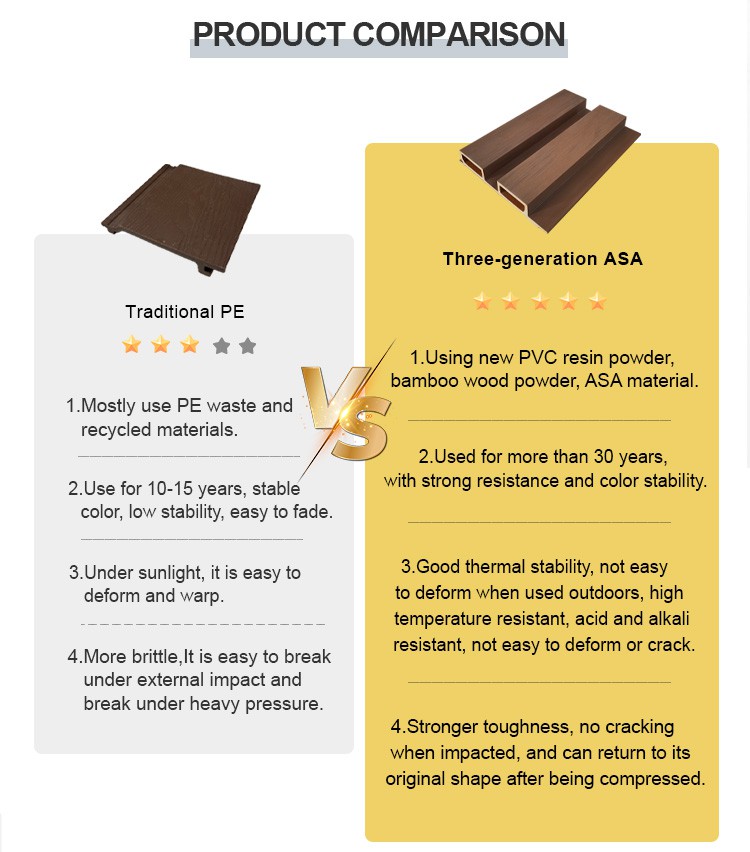

The Upgrade From First-Generation WPC
Early WPC cladding products used a PE surface layer - adequate for sheltered applications, but prone to fading, chalking, and surface cracking after prolonged sun exposure. The shift to ASA co-extrusion changes this fundamentally.
ASA (Acrylonitrile Styrene Acrylate) was developed specifically for outdoor polymer applications where PE and PVC fall short. It maintains color stability and surface integrity under sustained UV load, temperature cycling, and direct rain exposure - the exact conditions that degrade standard WPC panels within five to eight years.
This third-generation panel places an ASA co-extruded layer on both faces of the WPC core, doubling the protective coverage and extending rated outdoor service life to 30 years.

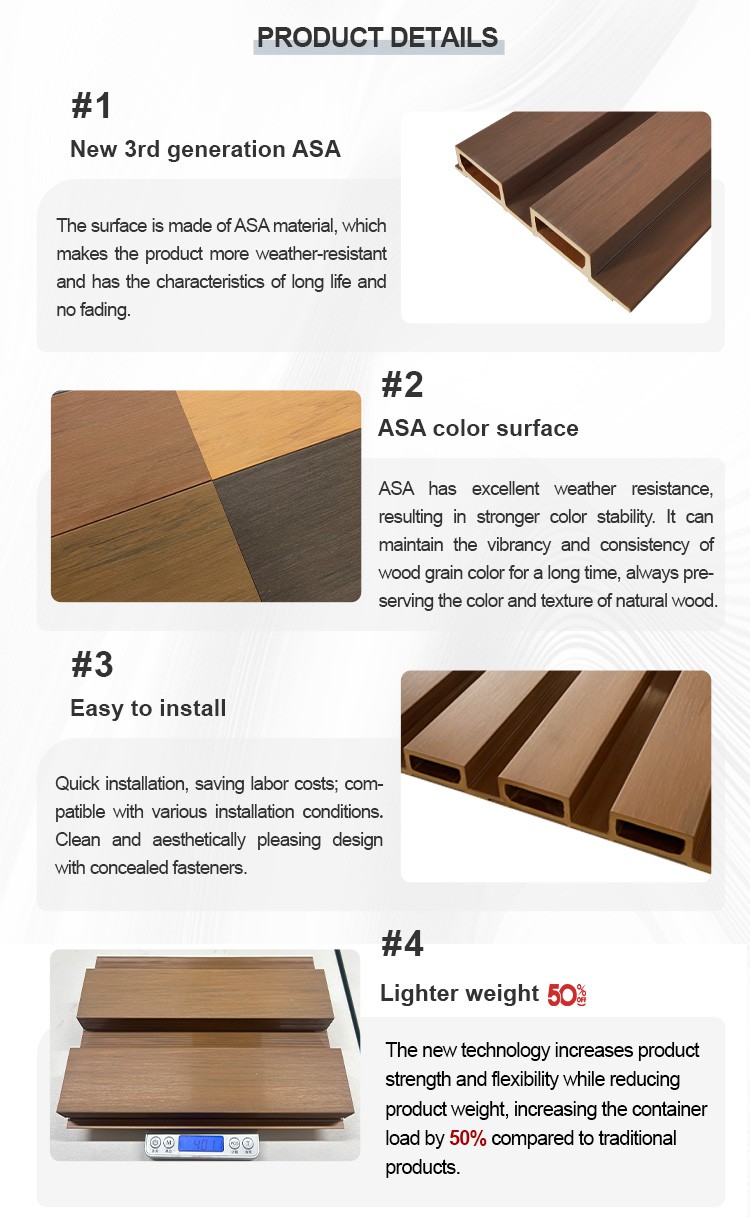

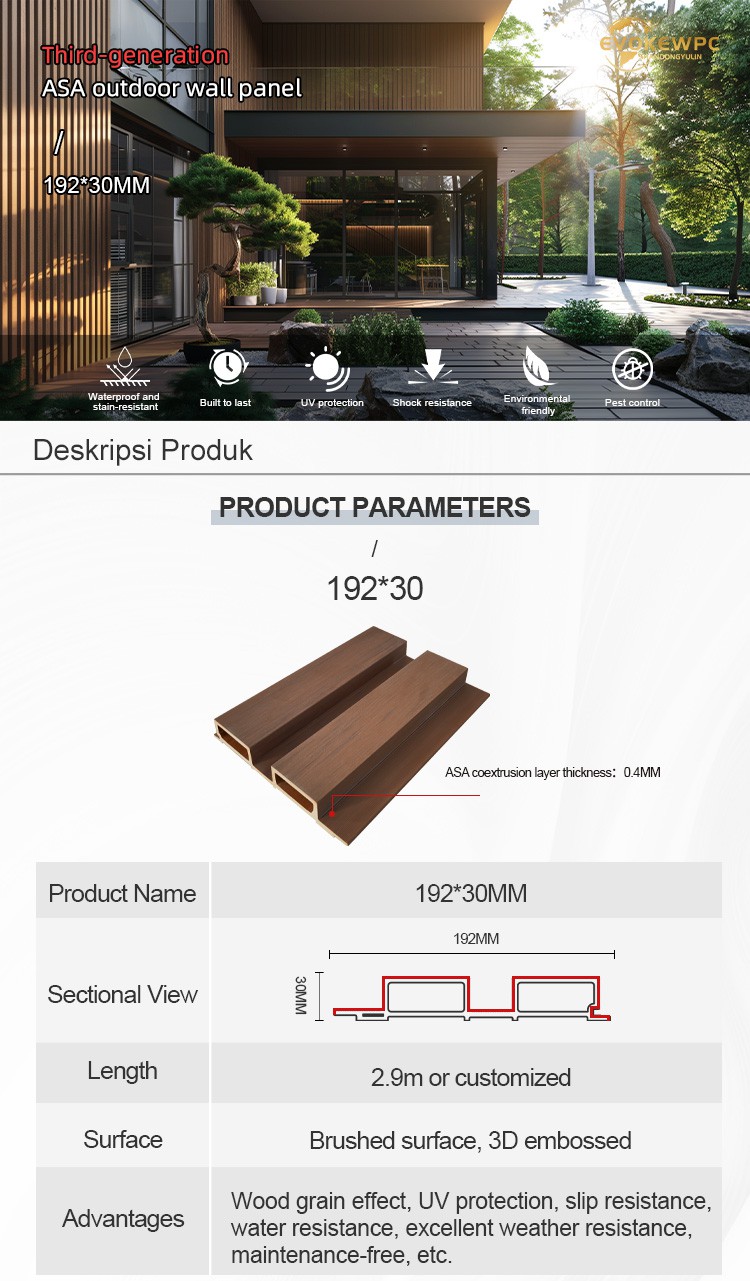

Panel Structure
Three distinct layers work together in each board:
Outer ASA Co-Extruded Layer: UV-stable, weather-resistant surface on both faces. Resists fading, chalking, and surface oxidation. Chemical resistance to acids, alkalis, and common solvents.
Polymer Composite Middle Layer: High-density WPC compound providing structural rigidity, load-bearing capacity, and dimensional stability across temperature ranges.
Reinforced Core Structure: Hollow or solid core geometry depending on profile, engineered to balance weight reduction with mechanical strength.
Technical Specifications
Core material: Wood fiber + HDPE + additives + ASA co-extruded layer
Available widths: 120 mm / 220 mm (profile dependent)
Standard lengths: 2.9 m / 3.0 m / customized
Thickness range: 12 mm – 25 mm
Installation: Hidden fastener system
Fire rating: B1
Service life: 30 years (outdoor environment)
Environmental: Eco-friendly / recyclable
Performance Properties
UV protection: ASA surface layer maintains color without repainting or recoating
Waterproof and stain-resistant: closed-cell structure prevents moisture absorption
Pest control: no organic content accessible to termites or insects
Shock resistance: high-impact composite core handles mechanical stress
Dimensional stability: minimal expansion and contraction across seasonal temperature swings
Zero formaldehyde: safe for occupied building exteriors
Typical Project Applications
Residential exterior feature walls and full-facade cladding
Villa and townhouse elevation systems
Commercial building perimeter cladding
Garden rooms, outdoor kitchens, and pergola wall infill
Balcony and terrace privacy screening
Landscape boundary wall cladding
Installation Notes
Hidden fastener clips engage the panel profile on both edges, holding each board securely without face-fixing screws or exposed fastener heads. Start clips set the alignment for the first course; subsequent boards click into sequence. Self-drilling screws fix clips to the subframe. Compatible with timber or steel stud substrates. Panels can be cut to length on site with standard circular saw equipment.
Manufacturer
EvokeWPC, trading brand of Shandong Yulin New Decoration Materials Co., Ltd. Established 2013. CE, ISO 9001, ISO 14001 certified. Exporting to distributors and contractors across 90+ countries. 30-year warranty commitment on ASA co-extruded product lines. Container-volume orders accepted with stable lead times and OEM color customization.
Submit a project enquiry or request sample profiles via the contact form.
